C.Carbon Blade 30 Freestyle&Race frame

27.72 EUR
Model: c.carbon_blade30
Váz mérete: 3 inch 120-150 mm

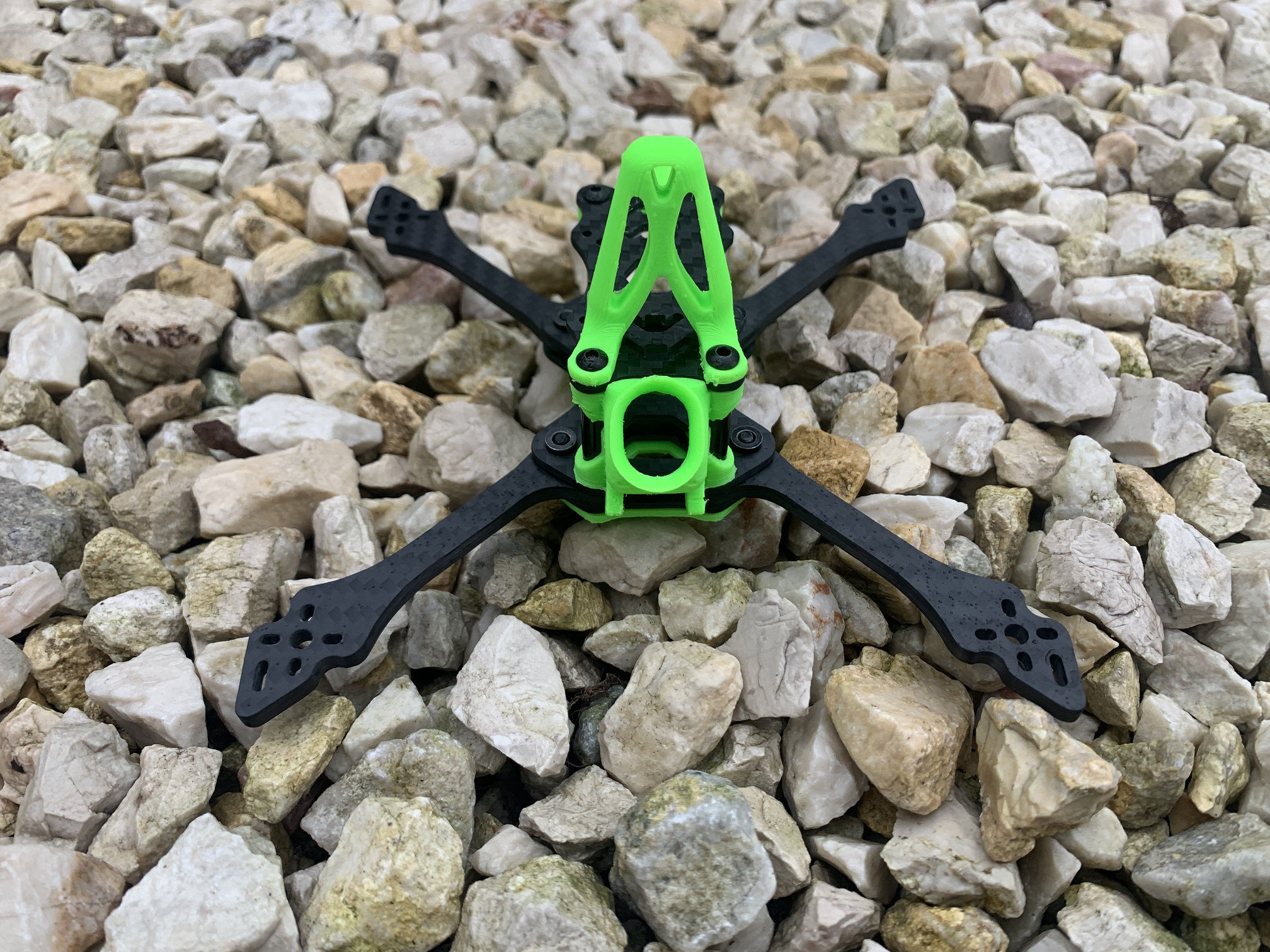

The Blade frame is designed and manufactured by the CCarbon workshop for racing and freestyle flights due to its light weight.
The frame is produced in-house from 3K carbon sheets with flat-bed CNC milling technology.

One of the great advantages of domestic production is that the necessary parts can be procured within 1-2 days.

The frame is designed and built for 20*20 flight and motor control.

The first frame of the CCarbon workshop, which was prepared to receive a Walksnail VTX unit!

Only 14 mm wide can be installed from the camera.

The frame comes with a fin and a micro Lollipop antenna holder.

Assembled Features:
Design: True-X or Stretch-X
Length: 120 / 135 mm
Width: 115 / 116 mm
Base height: 34 / 29 mm (without fins)
Motor-motor distance: 105-105 / 90-120 mm
For diagonal axis: 150 mm
Acceptable motor diagonal: 9-12 mm
Height of spacers: 20 or 25 mm
Arm thickness: 3 mm
Bottom, mid and top plate thickness: 1.5 mm
The assembled weight of the frame without TPU parts: 31 g
The weight of the basic TPU parts for the frames is approximately: 5 g
Recommended propeller size: 3"


Dimensions (Length * Width * Height) 120x115 mm
Mounting pattern 20x20 mm (micro)
stílus race
Weight 36 g
Váz formája True X
