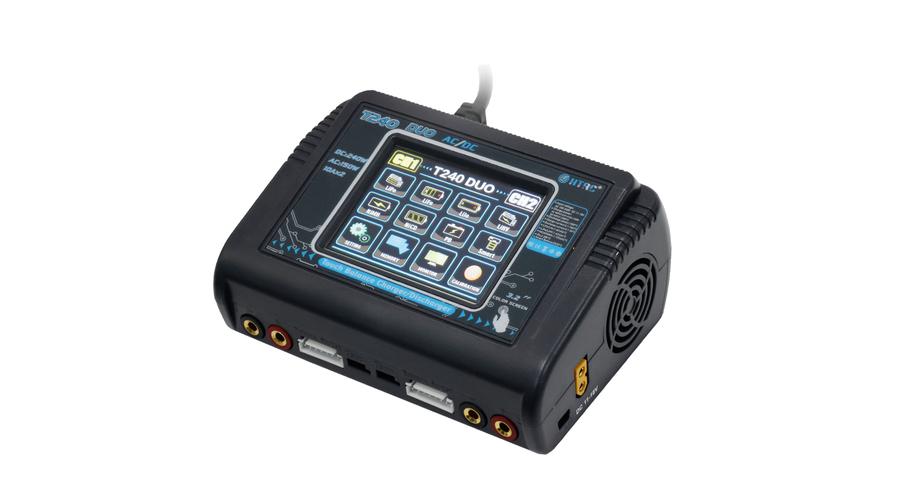

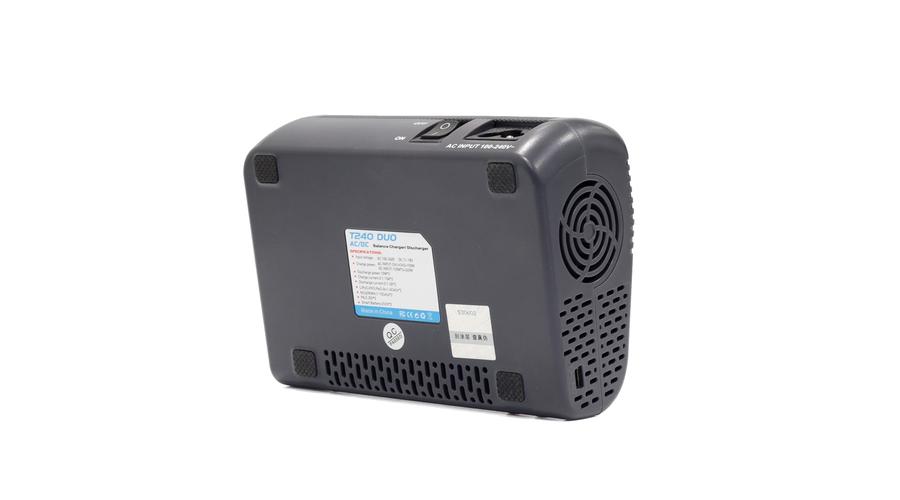

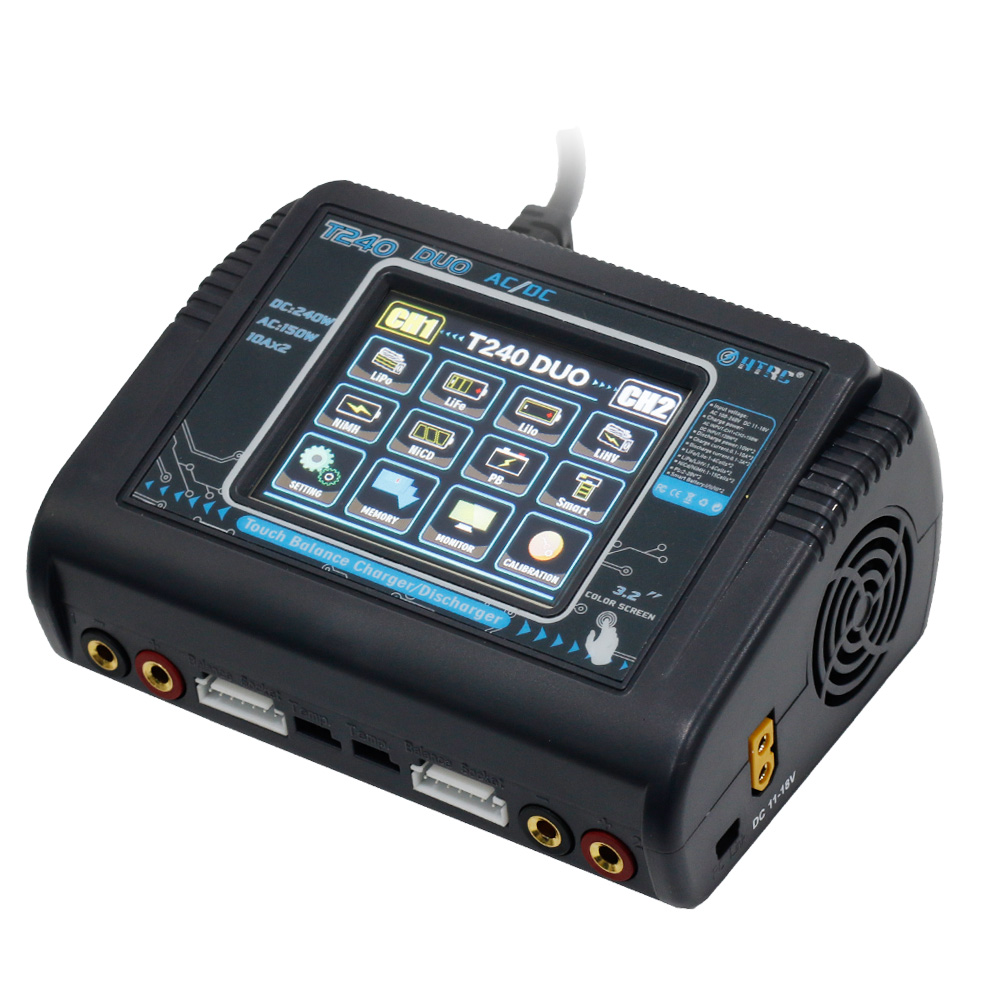

HTRC T240 dual battery charger with touch screen

Price:
79.38 EUR
Manufacturer:
Model: HTRC T240AC/DC DUO
T240 is a new design dual balance charger by HTRC,which can charge two different kinds of batteries simultaneously.Multi-function,high power,Utilizing 3.2 inch color LCD Toch screen display,easy operation,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.
Qty:pc

Description

It can support power distribution in AC mode,total power 150W (CH1+CH2=150Watt). and in DC mode, works in 2 * 120W. Max charge current can reach 10A each port in both AC and DC mode.

Features:

*Full plastic shell, safe, compact, beautiful.
*Twin-channel,charge two different kinds of batteries simultaneously.
*high power,single port max 150W.support power distribution.
*Practical for variety of batteries.LiPo LiFe Lilon NiCd NiMh Pb,and high power battery LiHV.
*Automatic identification of Li-Po batteries cells counts
*Adjustable digital DC Power.
*Built in smart cooling fan for easy heat dissipation.
*Built-In PFC AC adapter high efficiency.comes with power switch.
*Graph display of charging status
*Multiple charging modes.

  • -Lipo/Lilo/LiFe/LiHv: balance charge, charge, storage, discharge.
  • -NiMH/NiCd: Charge, Discharge, Cycle.
  • -PB: Charge,Discharge,Trickle.
*Multi-function:
  • -Battery Meter:Display lithium battery cell counts,battery capacity percentage,each cell's  voltage. (does not support 1s battery)
  • -TVC(Terminal voltage control):The Charger allows user to set the charge/discharge end voltage.
  • -Lithium Battery internal Resistance Check: can display each cell's resistance.(does not support 1s battery)
  • -Calibration: cell voltage monitoring and calibration.
  • -Smart battery:Smart battery I,II,III,(Need optional DJI Charging cable)
*Data storage and loading
*Re-peak and cycling of NiMH/NiCD battery.
*Maximum Safety:Automatic charge current limit,Delta-peak sensitivity, capacity limit, processing time limit,temperature threshold.
*Firmware update.


Parameters

Cell count 1-6
Maximum parallel charge 2 akkumulátor
AC power input 100-240 Volt
DC power input 11-18 Volt
DC plug XT60 plug
Charge current 0,1-10 Amper
Discharge current 0,1-2
Input AC 100-240V / DC 11-18V
Charge power AC mode 150W (CH1+CH2=150Watt),DC mode 120W*2 =240W
Discharge power Max 10W*2
Charge current range 0.1-10A *2
Discharge current range 0.1-2A*2
Lilon/LiPo/LiFe/LiHV cell count 1-6cells*2
NiCd/NiMH battery cell count 1-15cells*2
PB Battery voltage 2-20V*2
Smart battery I/II/III*2
Current drain for balancing 500mA/cell
Net Weight 0.48kg
Dimension 145*105*64mm
Gross weight 0.85kg
Package size 215*155*75mm

Reviews

5.00
1 rating
5
(1)
4
(0)
3
(0)
2
(0)
1
(0)
Write a review!
| 5 out of 5 Stars!
13/10/2020
Ez talán a legnépszerűbb két csatornás töltő a piacon. Nekem kettő is van belőle, mivel nem szeretem a paralel charger-eket.
Ez a töltő viszont így egyszerre kettő akkumulátort optimális C értéken képes kiegyensúlyozottan tölteni.
Ha szeretnéd sokáig használni az akksiidat, akkor kifejezetten ajánlom.
